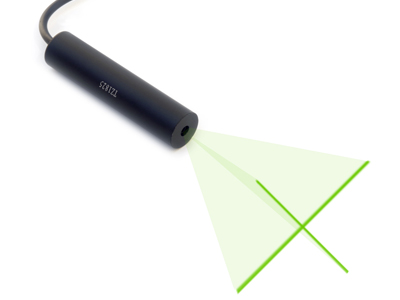

TZ16X70-520C : Green Laser Module 520nm Cross Lines Generator

Green Laser Module (520nm) Cross Lines Generator
US$ 59.00

This 520nm Cross lines generator green laser module, can operate between -10°C and 40°C.
These green laser modules are self-contained and consists of an anodized aluminium housing, laser diode, driver circuit and collimating lens.
This direct diode green cross line generator enables easy and convenient installation and operation for wide applications of positioning, alignment, medical, military targeting, etc.

Specifications :

  Laser Class :  3R (IIIa)
  Wavelength :  520nm
  Output Power :  <5mW
  Operation Voltage :  3-5V
  Operation Current :  170mA
  Optics :  Acrylic
  Beam :  Cross Lines ( 60 degree fan angle)
  Length :  70mm
  Diameter :  16mm
  Case Material :  Anodized Aluminium
  Operation Temp. :  -10°C to 40°C

Warning! These lasers emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification)
